Showcase Product Detail

Audio Accounts Products Images
New Vehicles » KTM » 250 XC-W
Model Quick Search

$7,898.00

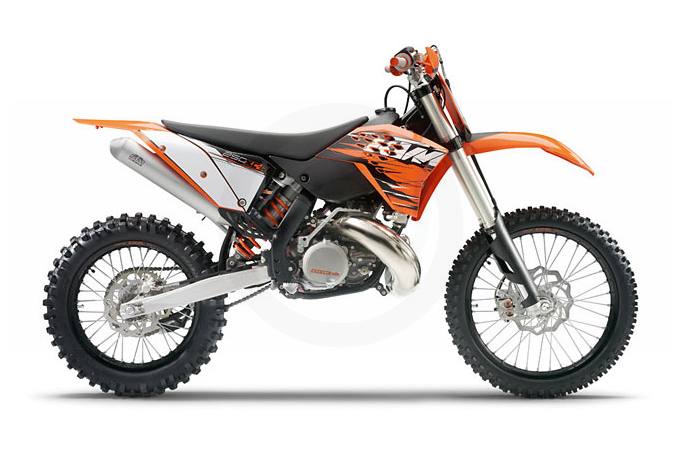

2010 KTM 250 XC-W
Request a Quote Financing Calculator Financing Form
Click here to view full image.
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • In Stock
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The popular KTM 250 XC-W two-stroke machine is the perfect trail bike for tight woods, creek crossings and mountain climbing.

  • Engine: Single cylinder, 2-stroke
  • Displacement: 249 cc
  • Weight: 100.4 kg (221.30 lbs.)
Engine
  • Engine type: Single cylinder, 2-stroke
  • Displacement: 249 cc
  • Bore x stroke: 66.4 x 72 mm (2.61 x 2.83")
  • Starter: Kickstarter and e-start
  • Transmission: 5 gears wide ratio
  • Carburetor: Keihin PWK 36 S AG
  • Control: TVC twin valve control
  • Lubrication: Mixture oil lubrication 1:60
  • Transmission oil: 15W50
  • Primary drive: 26:72
  • Final drive: 13:50
  • Cooling: Liquid cooled
  • Clutch: Wet multi-disc clutch, operated hydraulically
  • Ignition: Kokusan E
Chassis
  • Frame: Central double-cradle-type 25CrMo4
  • Subframe: Aluminium, removable
  • Handlebar: Neken Aluminium Ø 28/22 mm (1.10/0.87")
  • Front suspension: WP USD Ø 48 mm (1.89")
  • Rear suspension: WP monoshock PDS
  • Suspension travel front/rear: 300/335 mm (11.81/13.19")
  • Front brake: 260 mm (10.24") disc, Brembo double piston
  • Rear brake: 220 mm (8.66") disc, Brembo single piston
  • Rims, front/rear: 1.60 x 21"; 2.15 x 18"
  • Tires, front/rear: 80/100-21"; 110/100-18"
  • Chain: X-ring chain 5/8 x 1/4"
  • Main silencer: Aluminium
  • Steering head angle: 63.5°
  • Trail: Adjustable
  • Wheel base: 1475±10 mm (58.07±0.39")
  • Ground clearance (unloaded): 385 mm (15.16")
  • Seat height: 985 mm (38.78")
  • Tank capacity: approx. 11.5 liters (3.04 gal)
  • Weight (no fuel): approx. 100.4 kg (221.30 lbs)
New Engine Features
  • Reinforced cylinder head to provide far greater stability in tough conditions
  • Improved starting drive gear and new bushings for the electric starter drive designed for less maintenance and improved durability
  • New exhaust pipe with increased wall thickness for more resistance against damage - new radiator cap for better heat stability
New Chassis Features
  • Frame was redesigned with a steeper steering head angle for easier cornering and a better feeling in the front end
  • New suspension valuing and PDS needle design to provide damping slightly earlier in the suspension stroke for a more progressive feel
  • New brake master cylinder and Brembo front brake caliper along with new brake pads for awesome performance and progressive stopping power- redesigned air box with a new shape that helps reduce dirt and water collection
  • New TwinAir filter
  • New DID 520 VT2 X-ring chain for less friction and improved durability
  • New lighter Excel rims
  • New Renthal ‘Diamond’ hand grips

Other KTM  Models In Stock

Model
Type
Year
Color
Price
2010 KTM 150XC Dirt Bikes 2010 ORANGE $5,899.00
2011 KTM 250XCF-W Dirt Bikes 2011 ORANGE $7,998.00
2009 KTM 250XCF-W Dirt Bikes 2009 ORANGE $6,663.00
2011 KTM 250XC-W Dirt Bikes 2011 ORANGE $7,999.00
2011 KTM 300XC-W Dirt Bikes 2011 ORANGE $8,099.00
2011 KTM 300XC-W Dirt Bikes 2011 ORANGE $8,099.00
2011 KTM 300XC-W Dirt Bikes 2011 ORANGE $8,099.00
2011 KTM 300XC-W Dirt Bikes 2011 ORANGE $7,998.00
2009 KTM 400XC-W Dirt Bikes 2009 ORANGE $6,498.00
2009 KTM 450EXC Dirt Bikes 2009 ORANGE $6,590.00
Are you kidding me? Our owner must be out of his mind putting this bike so incredibly cheap!

View Details
2011 KTM 450XC-W Dirt Bikes 2011 ORANGE $8,798.00
2011 KTM 450XC-W Dirt Bikes 2011 ORANGE $8,798.00
2010 KTM 50SXMINI Dirt Bikes 2010 ORANGE $2,799.00
50 SX MINI

View Details
2009 KTM 530EXC-R Dirt Bikes 2009 ORANGE $6,890.00
This bike retails for over $9,000 dollars. We have marked it down over $2,500.00. That is unheard of on a brand NEW KTM.

View Details
2011 KTM 530XC-W Dirt Bikes 2011 ORANGE $8,994.00
2011 KTM 65SX Dirt Bikes 2011 ORANGE $4,398.00
2010 KTM 65SX Dirt Bikes 2010 ORANGE $3,899.00

Specifications

Engine
Engine Type Single cylinder, 2-stroke
Displacement 249 cc
Bore and Stroke 66.4 x 72 mm (2.61 x 2.83 in.)
Cooling Liquid cooled
Ignition Kokusan E
Chassis
Front Suspension WP USD 48 mm (1.89 in.)
Front Brakes 260 mm (10.24 in.) disc, Brembo double piston
Front Tire 80/100-21 in.
Rear Suspension WP monoshock PDS
Rear Brakes 220 mm (8.66 in.) disc, Brembo single piston
Rear Tire 110/100-18 in.
Dimensions
Dry Weight 100.4 kg (221.30 lbs.)
Fuel Capacity 11.5 l (3.04 gal.)
Wheelbase 1475±10 mm (58.07±0.39")
Ground Clearance 385 mm (15.16")
Seat Height 985 mm (38.78")
Trail Adjustable
Rake 63.5 deg.
Transmission
Transmission 5 gears wide ratio
Final Drive 13:50

Compare Models

 Print








Year 2010
Manufacturer KTM
Model 250 XC-W
Style Motocross
MSRP* $7,898.00
Chassis
Front Suspension WP USD 48 mm (1.89 in.)
Front Brakes 260 mm (10.24 in.) disc, Brembo double piston
Front Tire 80/100-21 in.
Rear Suspension WP monoshock PDS
Rear Brakes 220 mm (8.66 in.) disc, Brembo single piston
Rear Tire 110/100-18 in.
Dimensions
Dry Weight 100.4 kg (221.30 lbs.)
Fuel Capacity 11.5 l (3.04 gal.)
Wheelbase 1475±10 mm (58.07±0.39")
Ground Clearance 385 mm (15.16")
Seat Height 985 mm (38.78")
Trail Adjustable
Rake 63.5 deg.
Engine
Engine Type Single cylinder, 2-stroke
Displacement 249 cc
Bore and Stroke 66.4 x 72 mm (2.61 x 2.83 in.)
Cooling Liquid cooled
Compression Ratio
Fuel System
Ignition Kokusan E
General
Colors
Warranty
Transmission
Transmission 5 gears wide ratio
Final Drive 13:50

Current Promotions

There are currently no promotions available for this product.
